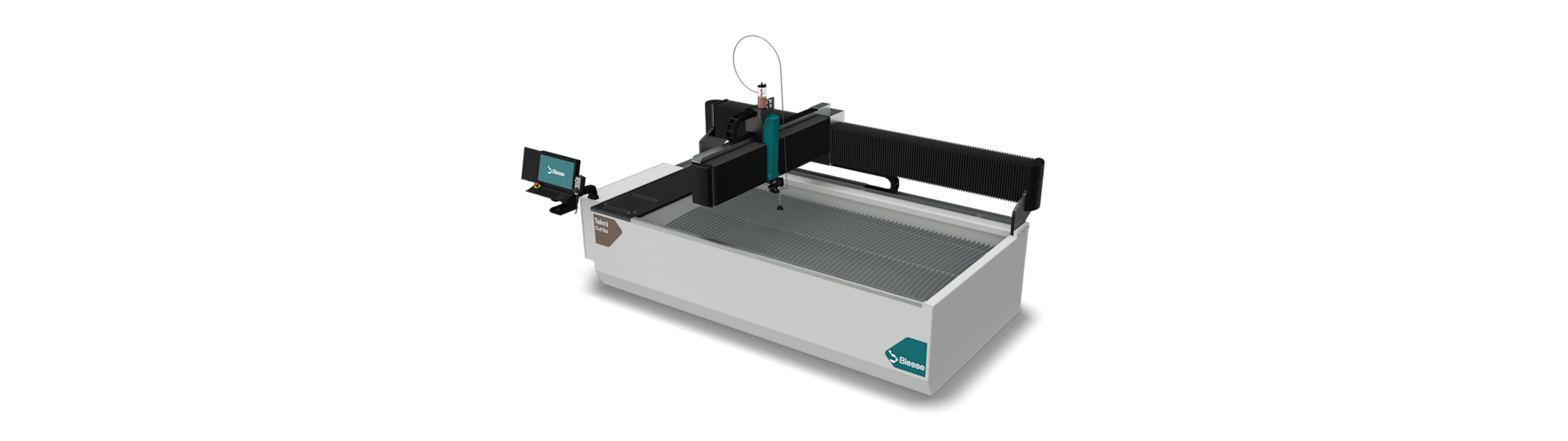

Tekni Cut Go J C
Precision and flexibility in a compact solution
The Tekni Cut Go J C brings waterjet cutting into a metalworking shop simply and efficiently. It delivers precise straight and bevel cuts while keeping operating complexity, maintenance time and running costs down. Compact, easy to use and reliable, it makes waterjet cutting a controlled, everyday process.
- Models
- 3
- Cutting area (mm)
- 1,525 × 915 to 3,050 × 1,525
- Cutting head
- 3-axis / 5-axis
- Pump pressure
- up to 6,000 bar
Product information and images: biesse.com
Tekni Cut Go J C
Features and technology
Precision and flexibility in a compact solution

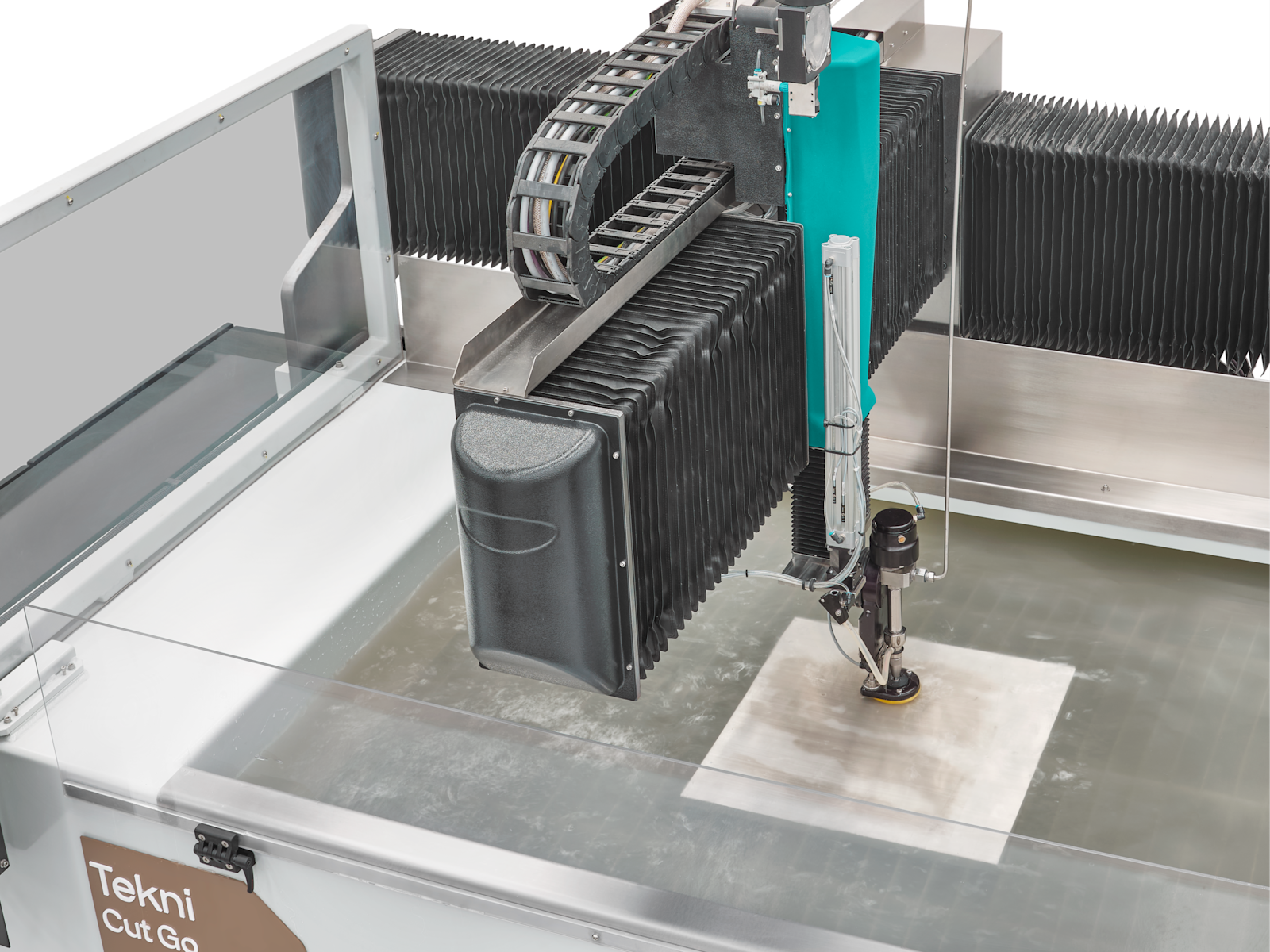

Compact structure, easy installation
A streamlined, space-saving structure designed to drop into any workshop. The compact frame keeps the footprint small without giving up access, so operators work comfortably and efficiently, and every component is arranged to simplify set-up so installation is quick and straightforward.
- Small footprint for existing workshops
- Open access for loading and operation
- Quick installation and commissioning

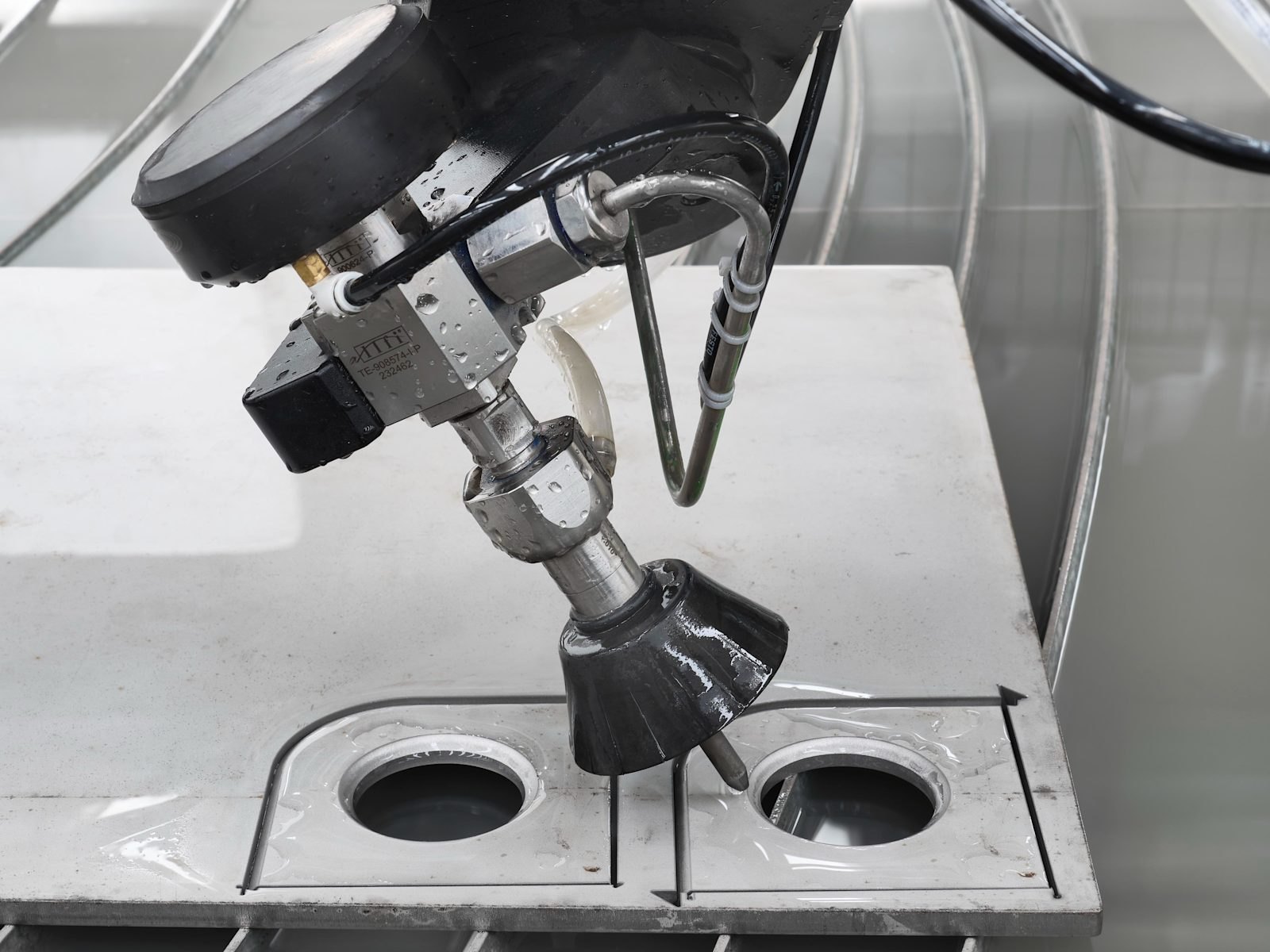

5-axis cutting precision
The 5-axis head with continuous rotation reproduces complex part geometries accurately without repositioning. Patented direct-drive DC servo motors on the tilting and rotating axes give rapid acceleration and positioning to ±0.1°, and the integrated height detector sets a precise stand-off before piercing and can map material flatness to adjust the Z height automatically.
- Continuous-rotation 5-axis head
- Direct-drive servo motors, ±0.1° positioning
- Automatic height detection and flatness compensation

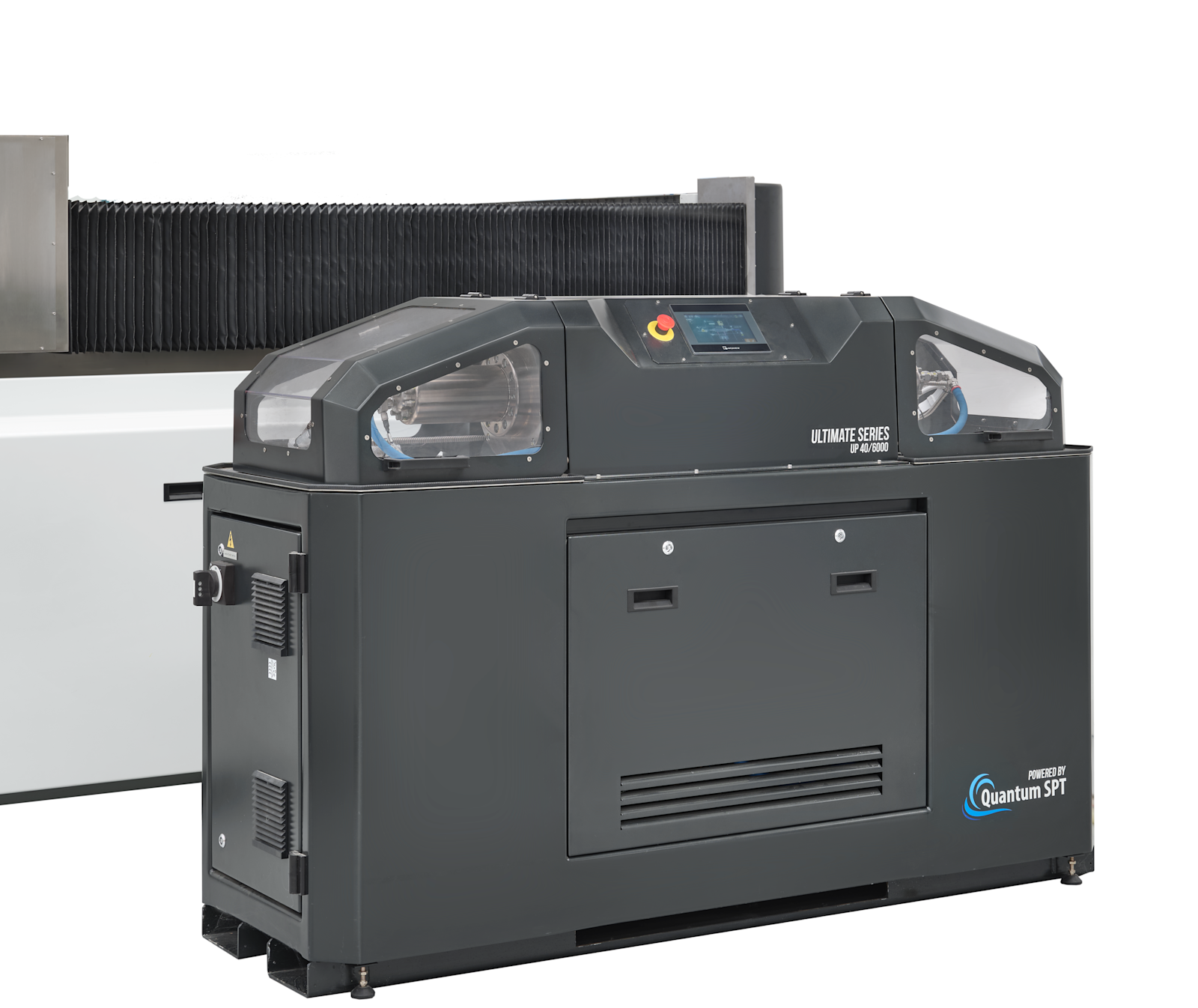

High-pressure waterjet technology
The compact, powerful high-pressure pump delivers up to 7.6 l/min at 6,000 bar with a constant pressure supply. Removing pressure fluctuation improves cut quality, reduces garnet consumption and extends the life of high-pressure components. Direct servo technology replaces hydraulic cylinders with compact servo linear actuators, and built-in diagnostics on the oil, water and air circuits support predictive maintenance.
- Up to 6,000 bar and 7.6 l/min
- Servo linear actuators, no hydraulic cylinders
- Integrated diagnostics for predictive maintenance

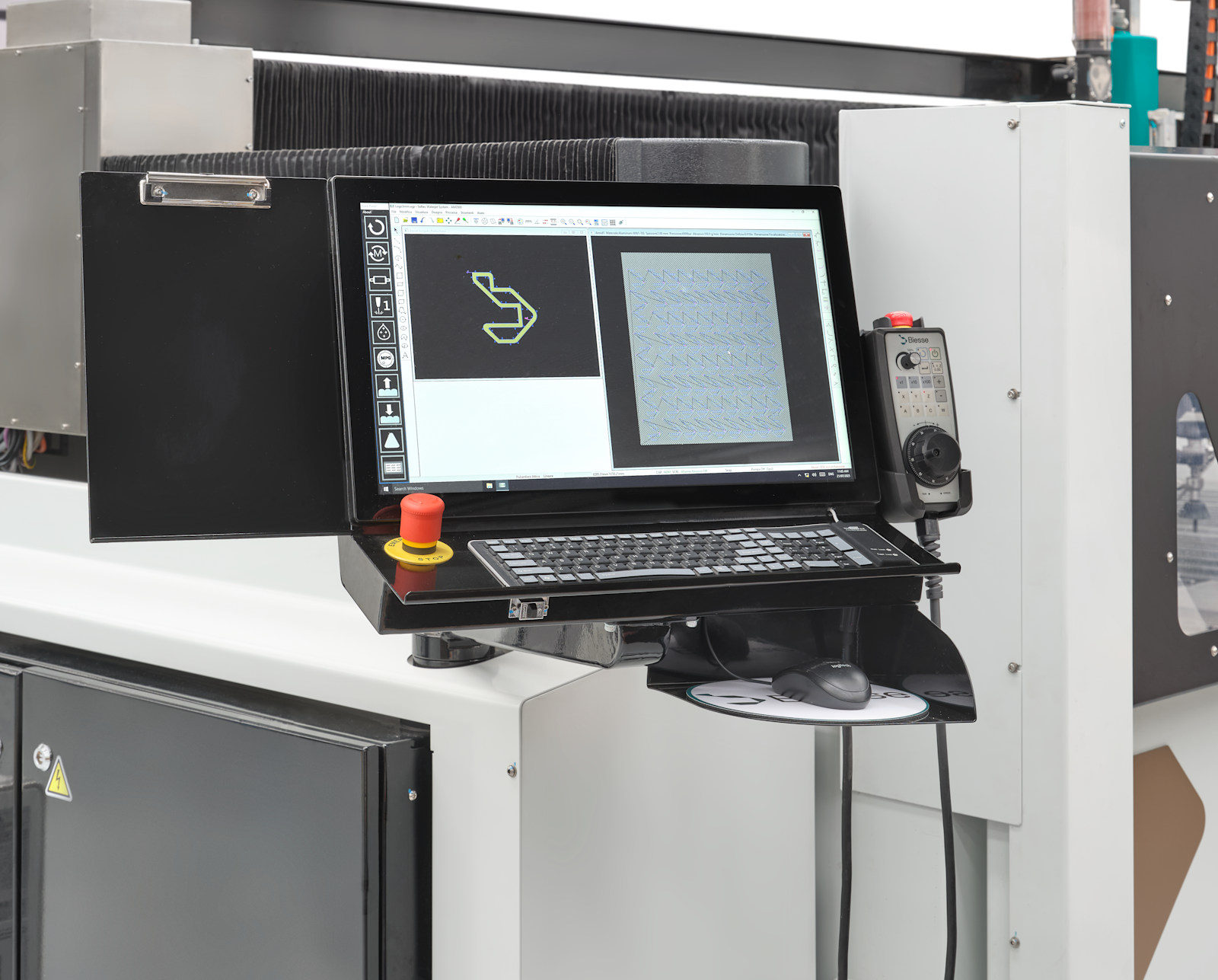

All-in-one software
Drawing, nesting and cutting flow through a single, easy-to-use application. Automatic nesting arranges parts on the sheet to minimise waste, and tools such as drag and drop, part rotation, object editing and cutting-order management let operators refine layouts quickly as production needs change.
- Drawing to cutting in one application
- Automatic nesting to reduce waste
- Drag and drop layout and cutting-order control

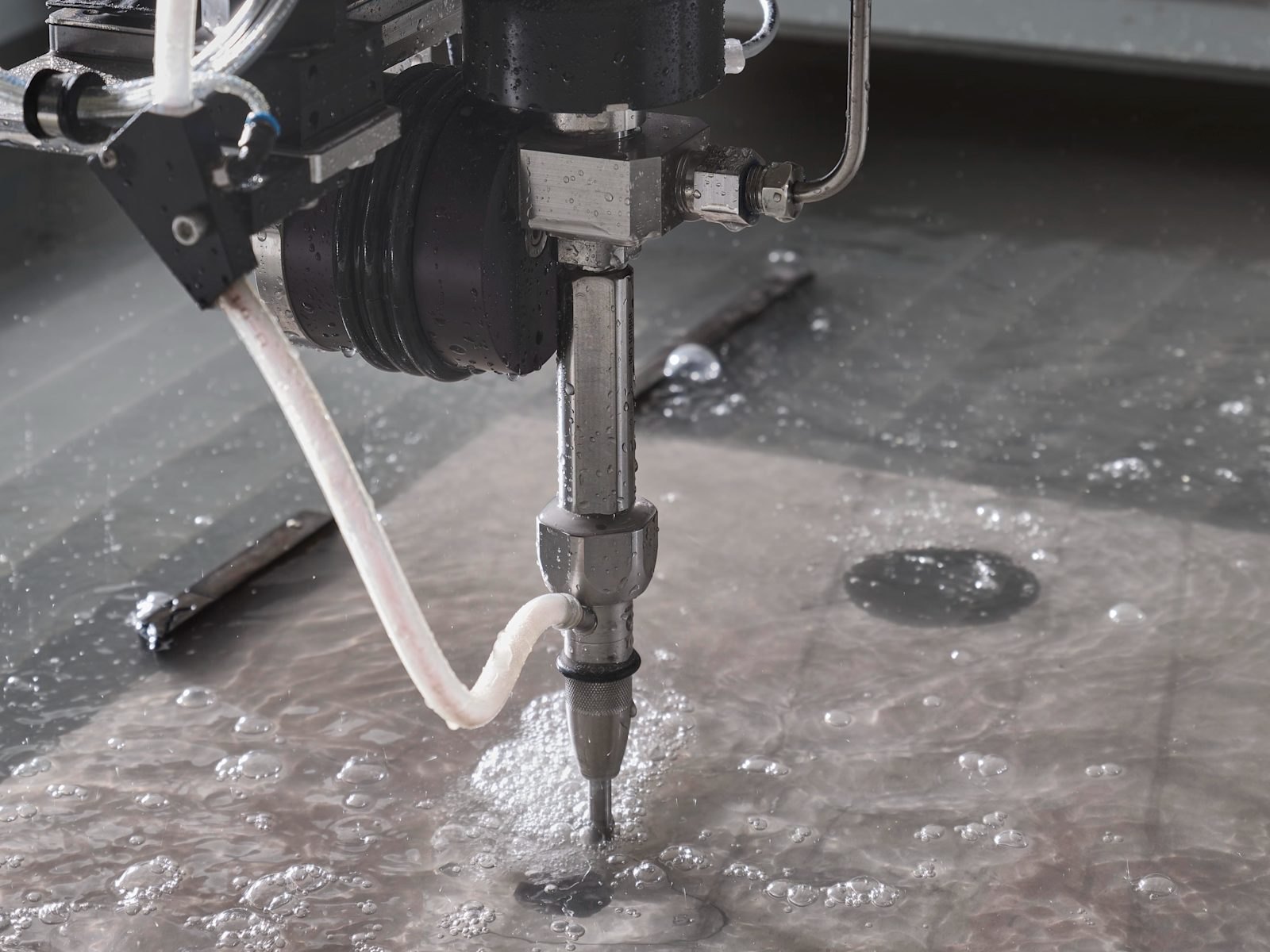

Advanced machining features
Fully underwater cutting keeps noise, splashing and abrasive dispersion to a minimum while improving surface quality. Integrated engraving marks text, logos and detailed graphics without piercing the material, and smart height detection adjusts the Z axis to surface irregularities for uniform depth on any material.
- Fully underwater cutting
- Integrated engraving without piercing
- Smart Z-axis height compensation

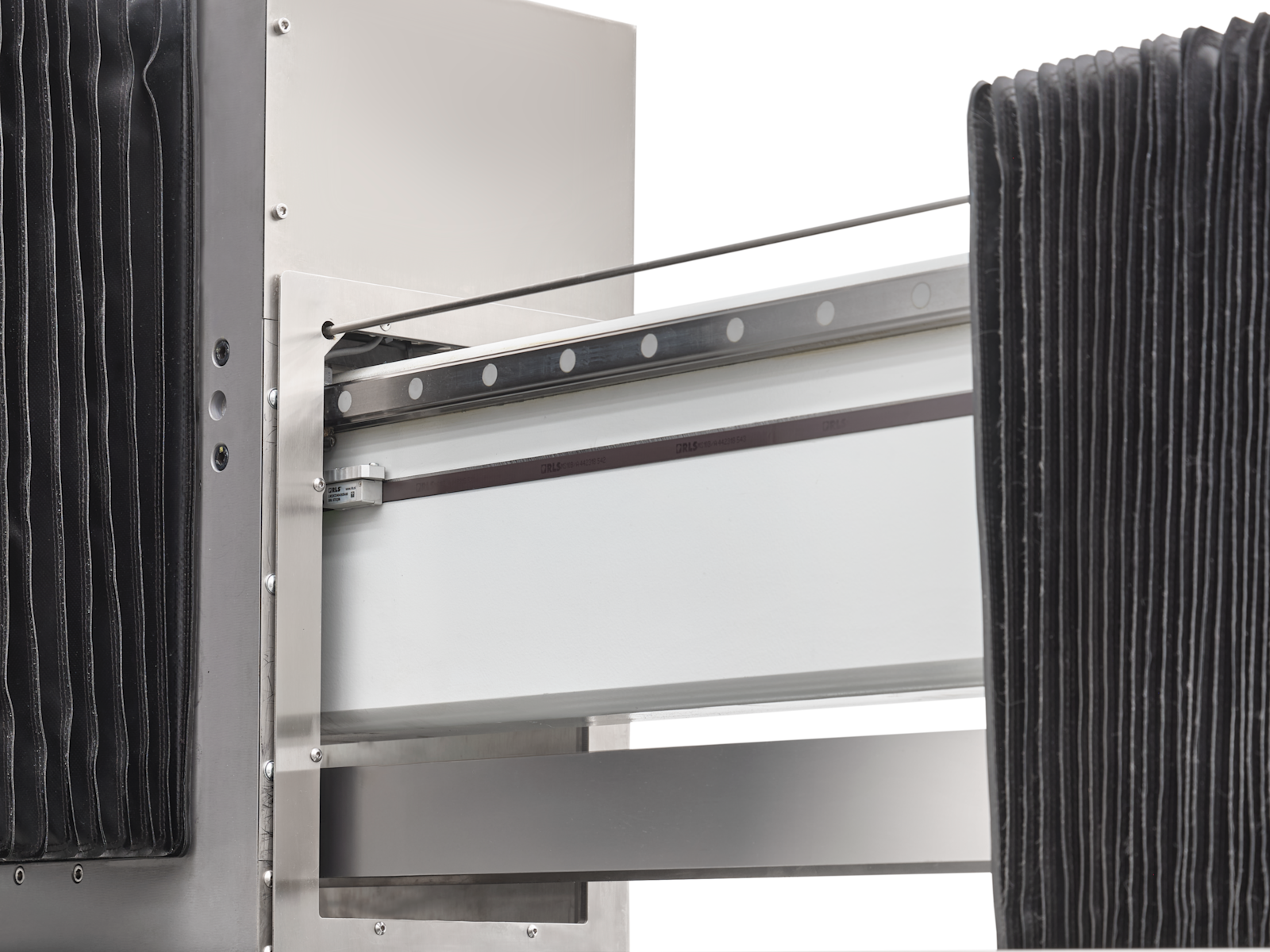

Precision and durability
Linear scale feedback gives positional precision of 0.05 mm and repeatability of 0.025 mm. The stainless steel band drive (SSBD) is designed for abrasive waterjet environments, resists wear and reaches speeds of up to 17.5 m/min, with protective bellows for long-term performance.
- 0.05 mm precision, 0.025 mm repeatability
- Stainless steel band drive up to 17.5 m/min
- Protective bellows on every axis
Specification
Tekni Cut Go J C models and pump options
Technical specification
| Model | Version | Configuration | Cutting area X × Y [mm] |
|---|---|---|---|
| 915 | 3-axis | Start | 1,525 × 915 |
| 1530 | 3-axis | Start | 3,050 × 1,525 |
| 1227 | 5-axis | Regular | 2,700 × 1,220 |
Pump options
| Series | Pump | Max output pressure [bar] | Max output volume [l/min] | Pump power [kW] |
|---|---|---|---|---|
| Light series | VP 15/52 | 4,100 | 2.0 | 15 |
| Light series | VP 22/60 | 4,137 | 2.0 | 22 |
| Power series | ESP 37/66 | 4,550 | 3.8 | 37 |
| Power series | ESP 74/66 (dual pump) | 4,550 | 7.6 | 74 |
| Ultimate series | UP 40/6000 | 6,000 | 3.0 | 40 |
Sectors and applications
- Automotive parts
- Industrial components
- Household decoration
Cutting areas are nominal X × Y in millimetres. Configurations, options and pump pairings are confirmed at quotation.
Enquire
Request a quotation for the Tekni Cut Go J C
Supplied, installed and commissioned in the UK by AMC Jets, with operator training, a service plan and spare parts from stock. Add the machine to your quote request and we will come back with pricing and lead time.
Price on application
Adds Tekni Cut Go J C to your quote request. We come back with price, delivery and installation options, usually the same working day.
Product information and images: biesse.com. Specifications may change; confirm the configuration with AMC Jets before ordering.
The range
Other machines in the Tekni Cut series

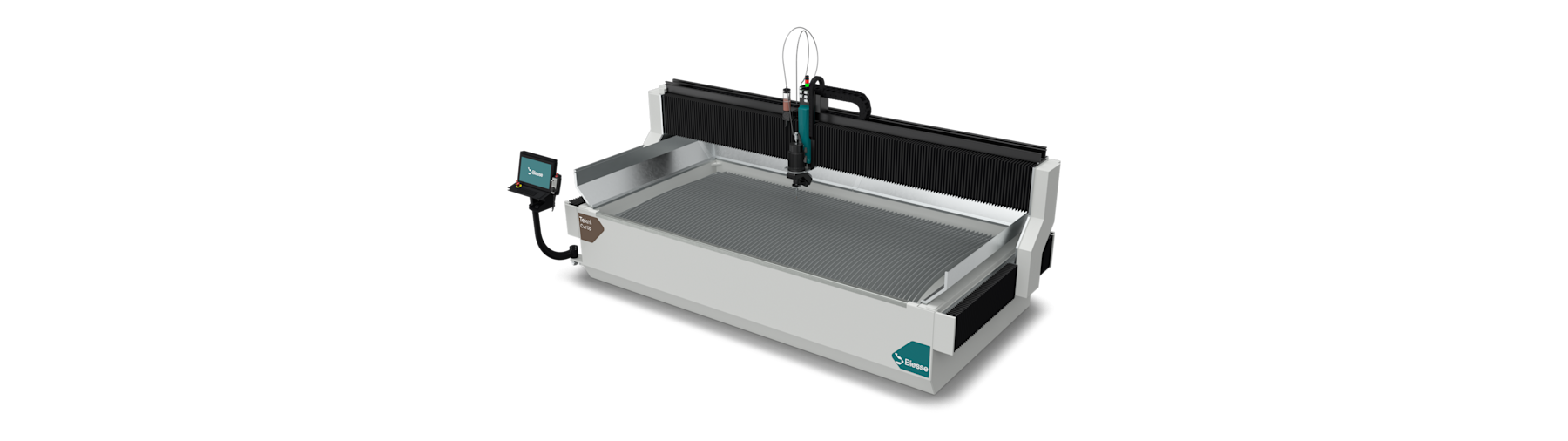

Tekni Cut Up J M
Immediate operation and seamless integration
Monobloc design, 3,700 × 1,700 mm cutting area
Price on application

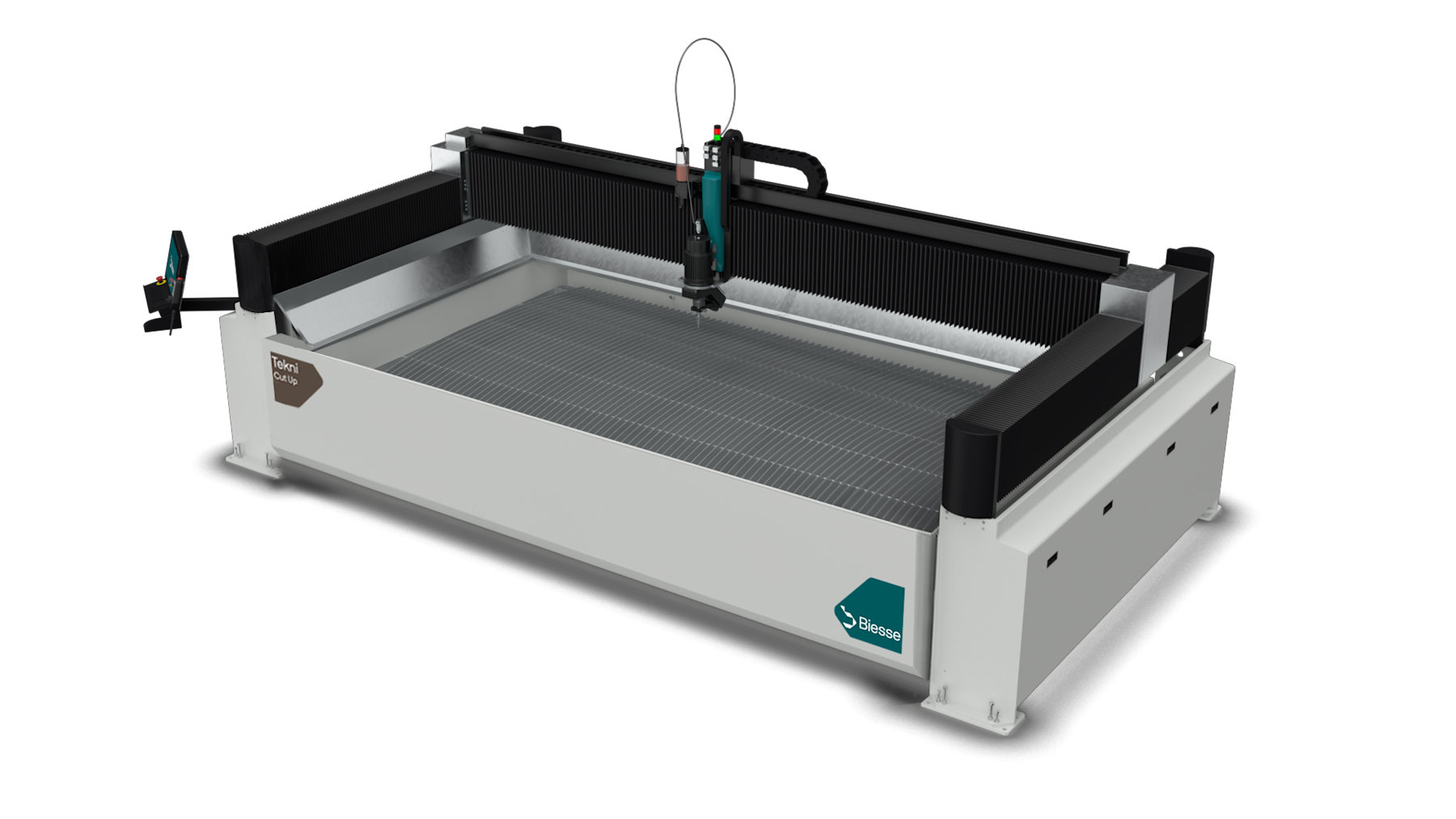

Tekni Cut Up J G
Deep power, unshakable accuracy
Gantry system, cutting areas up to 6,100 × 3,050 mm
Price on application

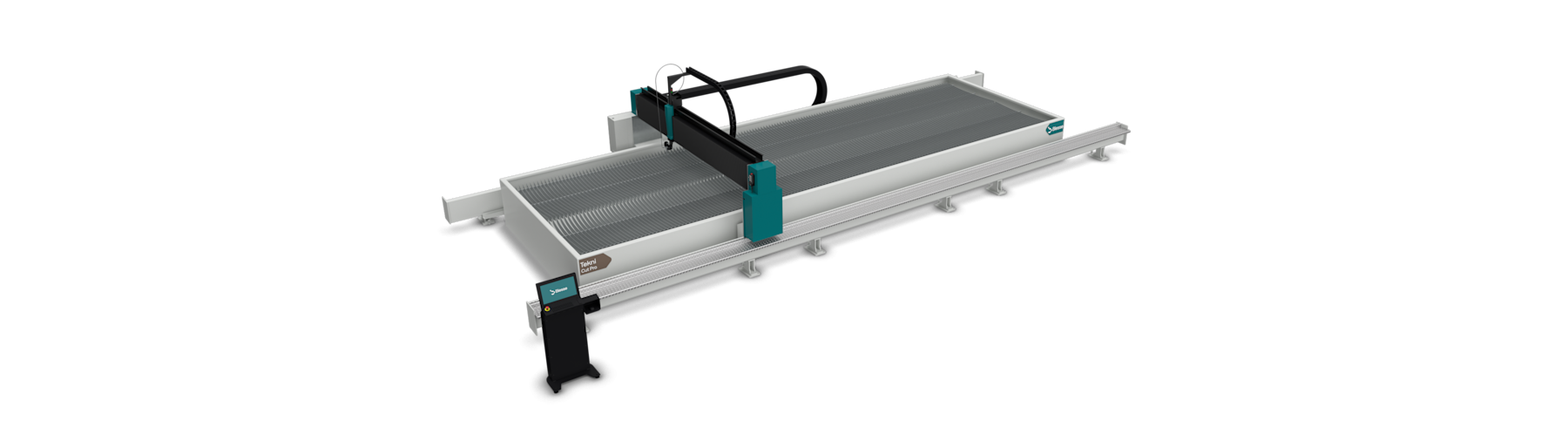

Tekni Cut Pro J L
