Tekni Cut Go J C
Precision and flexibility in a compact solution
Cutting areas from 1,525 × 915 mm to 3,050 × 1,525 mm
Price on application
Techni Waterjet · a Biesse company
New for 2026

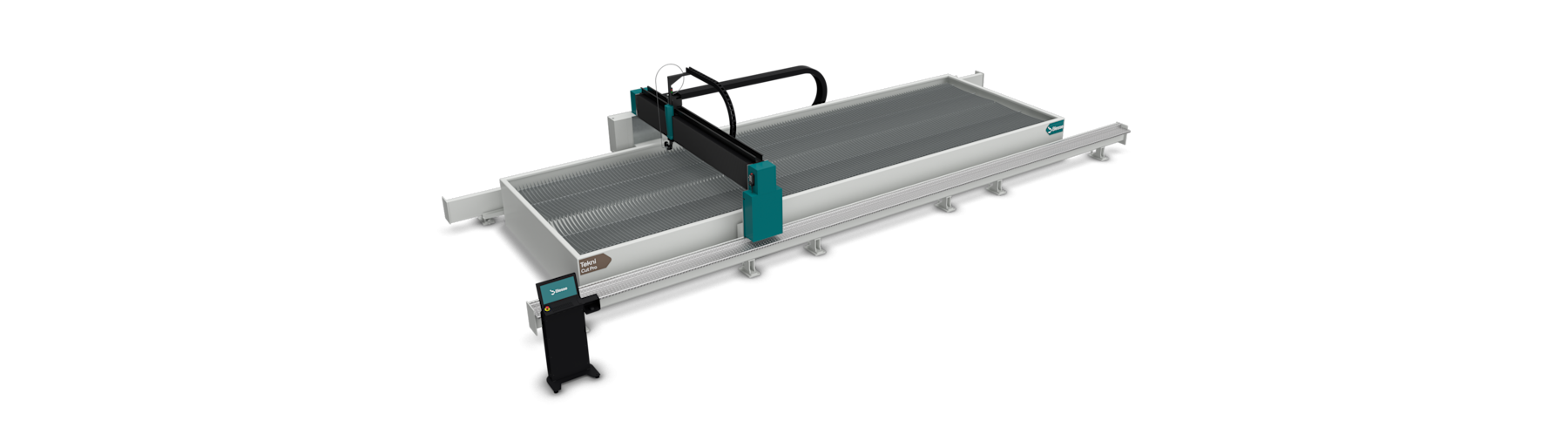

Tekni Cut waterjet cutting machines
Four waterjet cutting systems from Techni Waterjet, a Biesse company, from a compact workshop machine to a 10 metre large-format gantry. Supplied, installed and supported in the UK by AMC Jets, with spare parts and consumables from stock.
- Machines in the range
- 4
- Cutting areas
- 1,525 × 915 mm to 10,000 × 3,000 mm
- Pump pressure
- up to 6,000 bar
- Cutting head
- 3-axis or 5-axis
Product information and images: biesse.com
The range
One range, four footprints
Every Tekni Cut machine shares the same cutting technology: a 5-axis head with continuous rotation, a direct-servo high-pressure pump with up to 6,000 bar, fully underwater cutting and one piece of software that takes you from drawing to nesting to cutting. Choose the size that fits your sheets, your floor space and your production plan.
Tekni Cut Up J M
Immediate operation and seamless integration
Monobloc design, 3,700 × 1,700 mm cutting area
Price on application
Tekni Cut Up J G
Deep power, unshakable accuracy
Gantry system, cutting areas up to 6,100 × 3,050 mm
Price on application
Tekni Cut Pro J L
Waterjet cutting. Precision at every scale.
Large-format 10,000 × 3,000 mm cutting area
Price on application
AMC Jets
Why buy a Tekni Cut machine from AMC Jets
Over 30 years in waterjet
AMC Jets has supplied, serviced and supported waterjet cutting machines across the UK since the 1990s. We know these machines from the pump seals to the control software.
Spare parts from stock
Techni Waterjet cutting head parts, mixing tubes, orifices, filters and pump parts are on our shelves today, so your machine keeps cutting.
Installation and training
Site survey, delivery, commissioning and operator training are arranged by our own engineers, with service and inspection plans to follow.
Honest advice
We will help you choose the right table size, pump and configuration for the work you actually do, not the biggest machine on the brochure.
Shared technology
What every Tekni Cut machine has in common
The same cutting head, pump technology, software and drive system across the whole range, so the skills and spare parts carry over from one machine to the next.
5-axis cutting precision
The 5-axis head with continuous rotation reproduces complex part geometries accurately without repositioning. Patented direct-drive DC servo motors on the tilting and rotating axes give rapid acceleration and positioning to ±0.1°, and the integrated height detector sets a precise stand-off before piercing and can map material flatness to adjust the Z height automatically.
- Continuous-rotation 5-axis head
- Direct-drive servo motors, ±0.1° positioning
- Automatic height detection and flatness compensation
High-pressure waterjet technology
The compact, powerful high-pressure pump delivers up to 7.6 l/min at 6,000 bar with a constant pressure supply. Removing pressure fluctuation improves cut quality, reduces garnet consumption and extends the life of high-pressure components. Direct servo technology replaces hydraulic cylinders with compact servo linear actuators, and built-in diagnostics on the oil, water and air circuits support predictive maintenance.
- Up to 6,000 bar and 7.6 l/min
- Servo linear actuators, no hydraulic cylinders
- Integrated diagnostics for predictive maintenance
All-in-one software
Drawing, nesting and cutting flow through a single, easy-to-use application. Automatic nesting arranges parts on the sheet to minimise waste, and tools such as drag and drop, part rotation, object editing and cutting-order management let operators refine layouts quickly as production needs change.
- Drawing to cutting in one application
- Automatic nesting to reduce waste
- Drag and drop layout and cutting-order control
Advanced machining features
Fully underwater cutting keeps noise, splashing and abrasive dispersion to a minimum while improving surface quality. Integrated engraving marks text, logos and detailed graphics without piercing the material, and smart height detection adjusts the Z axis to surface irregularities for uniform depth on any material.
- Fully underwater cutting
- Integrated engraving without piercing
- Smart Z-axis height compensation
Precision and durability
Linear scale feedback gives positional precision of 0.05 mm and repeatability of 0.025 mm. The stainless steel band drive (SSBD) is designed for abrasive waterjet environments, resists wear and reaches speeds of up to 17.5 m/min, with protective bellows for long-term performance.
- 0.05 mm precision, 0.025 mm repeatability
- Stainless steel band drive up to 17.5 m/min
- Protective bellows on every axis
Compare
Models and cutting areas across the range
Every model is available with the pump options below. Ask us which combination suits your materials and throughput.
Technical specification
| Machine | Model | Version | Configuration | Cutting area X × Y [mm] |
|---|---|---|---|---|
| Tekni Cut Go J C | 915 | 3-axis | Start | 1,525 × 915 |
| Tekni Cut Go J C | 1530 | 3-axis | Start | 3,050 × 1,525 |
| Tekni Cut Go J C | 1227 | 5-axis | Regular | 2,700 × 1,220 |
| Tekni Cut Up J M | 1737 | 3-axis | Start | 3,700 × 1,700 |
| Tekni Cut Up J M | 1737 | 5-axis | Regular | 3,700 × 1,700 |
| Tekni Cut Up J G | 2040 | 3-axis | Start | 4,000 × 2,000 |
| Tekni Cut Up J G | 2347 | 3-axis | Start | 4,750 × 2,350 |
| Tekni Cut Up J G | 3061 | 3-axis | Start | 6,100 × 3,050 |
| Tekni Cut Up J G | 2036 | 5-axis | Regular | 3,650 × 2,000 |
| Tekni Cut Up J G | 2044 | 5-axis | Regular | 4,415 × 2,025 |
| Tekni Cut Up J G | 2758 | 5-axis | Regular | 5,800 × 2,730 |
| Tekni Cut Pro J L | 30100 | 3-axis | Regular | 10,000 × 3,000 |
| Tekni Cut Pro J L | 30100 | 5-axis | Full | 10,000 × 3,000 |
Pump options
| Series | Pump | Max output pressure [bar] | Max output volume [l/min] | Pump power [kW] |
|---|---|---|---|---|
| Light series | VP 15/52 | 4,100 | 2.0 | 15 |
| Light series | VP 22/60 | 4,137 | 2.0 | 22 |
| Power series | ESP 37/66 | 4,550 | 3.8 | 37 |
| Power series | ESP 74/66 (dual pump) | 4,550 | 7.6 | 74 |
| Ultimate series | UP 40/6000 | 6,000 | 3.0 | 40 |
Sectors and applications
- Automotive parts
- Industrial components
- Household decoration
- Aerospace
- Oil and gas equipment
- Marine transportation
Cutting areas are nominal X × Y in millimetres. Light series pumps are offered on the Go J C only.
Next step
Which Tekni Cut is right for your shop?
Tell us what you cut, how thick and how often. We will recommend a machine, table size and pump, and put together a quotation with installation, training and a service plan.
Product information and images: biesse.com. Specifications may change; confirm the configuration with AMC Jets before ordering.
