Precision and flexibility in a compact solution
Cutting areas from 1,525 × 915 mm to 3,050 × 1,525 mm. Supplied, installed and supported in the UK by AMC Jets.
Prices on request. Add this part to your quote and we will come back to you with price and availability, usually the same working day.
Questions about this part? Call +44 (0)1827 60700 or email sales@amcjets.com.

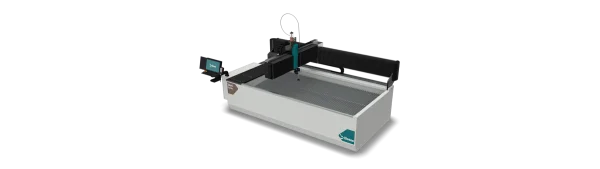

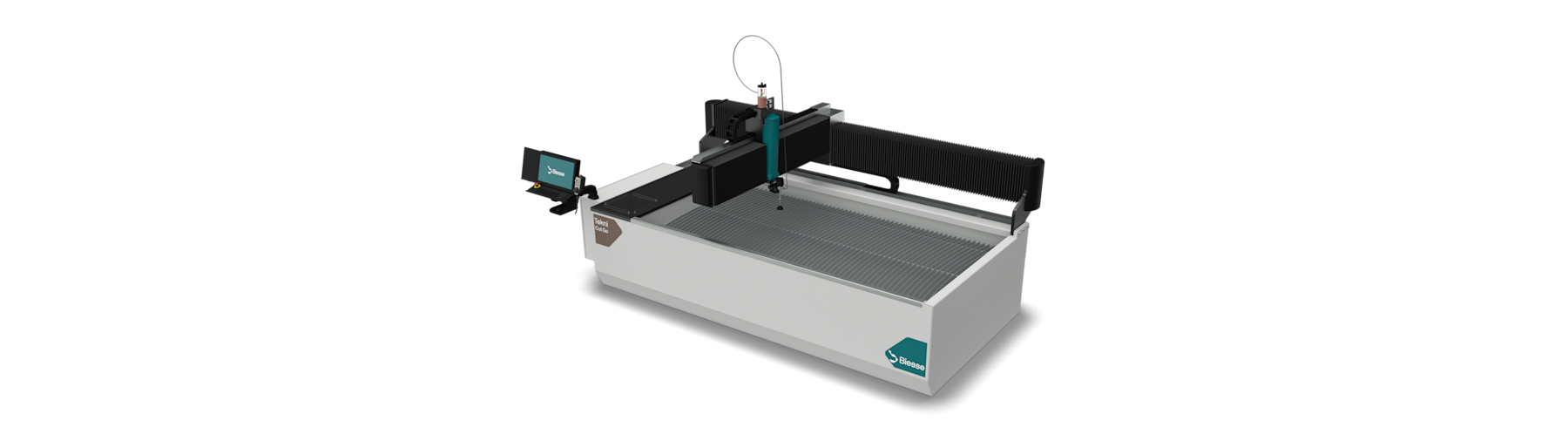

The Tekni Cut Go J C brings waterjet cutting into a metalworking shop simply and efficiently. It delivers precise straight and bevel cuts while keeping operating complexity, maintenance time and running costs down. Compact, easy to use and reliable, it makes waterjet cutting a controlled, everyday process.
A streamlined, space-saving structure designed to drop into any workshop. The compact frame keeps the footprint small without giving up access, so operators work comfortably and efficiently, and every component is arranged to simplify set-up so installation is quick and straightforward.
| Model | Version | Configuration | Cutting area X × Y [mm] |
|---|---|---|---|
| 915 | 3-axis | Start | 1,525 × 915 |
| 1530 | 3-axis | Start | 3,050 × 1,525 |
| 1227 | 5-axis | Regular | 2,700 × 1,220 |
| Series | Pump | Max pressure [bar] | Max volume [l/min] | Power [kW] |
|---|---|---|---|---|
| Light series | VP 15/52 | 4,100 | 2.0 | 15 |
| Light series | VP 22/60 | 4,137 | 2.0 | 22 |
| Power series | ESP 37/66 | 4,550 | 3.8 | 37 |
| Power series | ESP 74/66 (dual pump) | 4,550 | 7.6 | 74 |
| Ultimate series | UP 40/6000 | 6,000 | 3.0 | 40 |
Sectors and applications: Automotive parts, Industrial components, Household decoration.
Read the full Tekni Cut Go J C sales page or compare the whole range.
Product information and images: biesse.com.
