Immediate operation and seamless integration
Monobloc design, 3,700 × 1,700 mm cutting area. Supplied, installed and supported in the UK by AMC Jets.
Prices on request. Add this part to your quote and we will come back to you with price and availability, usually the same working day.
Questions about this part? Call +44 (0)1827 60700 or email sales@amcjets.com.

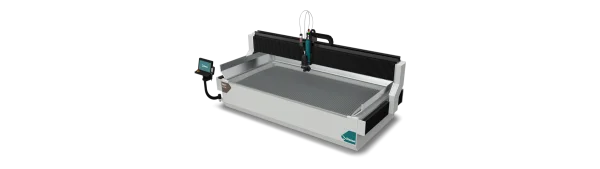

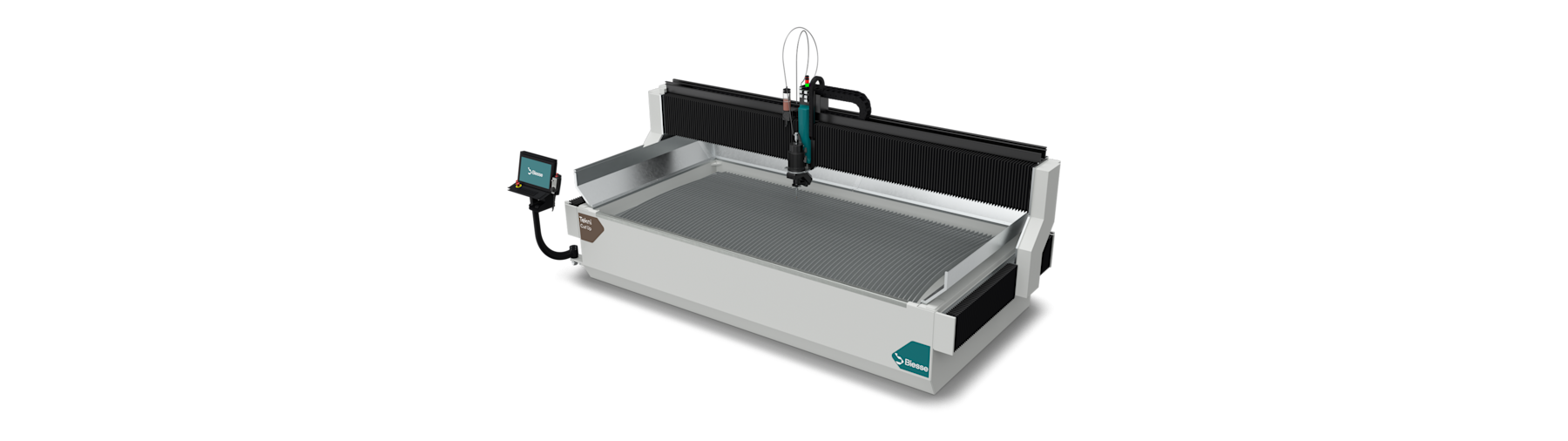

The Tekni Cut Up J M combines precision and flexibility for cutting every type of metal. Its monobloc design means quick installation and fast commissioning: a compact, versatile machine that is ready to adapt as your production needs change.
The monobloc structure arrives as one unit, so installation and commissioning are quick and the machine goes from delivery to full operation in days rather than weeks. Designed for seamless integration into an existing shop, it gives you fast start-up and immediate productivity.
| Model | Version | Configuration | Cutting area X × Y [mm] |
|---|---|---|---|
| 1737 | 3-axis | Start | 3,700 × 1,700 |
| 1737 | 5-axis | Regular | 3,700 × 1,700 |
| Series | Pump | Max pressure [bar] | Max volume [l/min] | Power [kW] |
|---|---|---|---|---|
| Power series | ESP 37/66 | 4,550 | 3.8 | 37 |
| Power series | ESP 74/66 (dual pump) | 4,550 | 7.6 | 74 |
| Ultimate series | UP 40/6000 | 6,000 | 3.0 | 40 |
Sectors and applications: Aerospace, Automotive parts, Industrial components, Household decoration.
Read the full Tekni Cut Up J M sales page or compare the whole range.
Product information and images: biesse.com.
