Waterjet cutting. Precision at every scale.
Large-format 10,000 × 3,000 mm cutting area. Supplied, installed and supported in the UK by AMC Jets.
Prices on request. Add this part to your quote and we will come back to you with price and availability, usually the same working day.
Questions about this part? Call +44 (0)1827 60700 or email sales@amcjets.com.

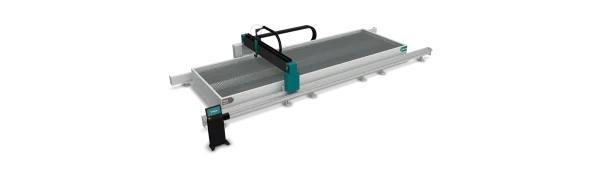

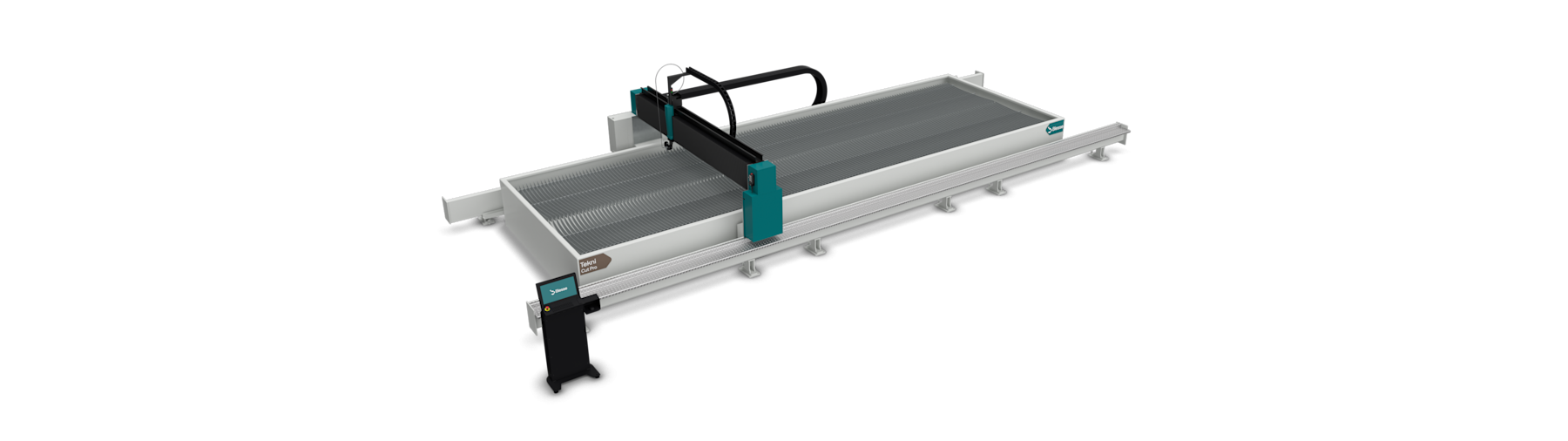

The Tekni Cut Pro J L is the large-format waterjet system for advanced technology, precision and high productivity in metalworking. Built for full-size sheets, it allows complex cuts with maximum freedom and control, and its consistent performance, reliability and ease of operation suit the most demanding projects.
With a 10,000 × 3,000 mm work table, the Pro J L processes large-format sheets without repositioning. Working on full sheets reduces set-up time, simplifies handling and lowers the risk of errors or material damage, which makes it ideal for industries dealing with large, heavy components where consistent precision across a wide cutting area is essential.
| Model | Version | Configuration | Cutting area X × Y [mm] |
|---|---|---|---|
| 30100 | 3-axis | Regular | 10,000 × 3,000 |
| 30100 | 5-axis | Full | 10,000 × 3,000 |
| Series | Pump | Max pressure [bar] | Max volume [l/min] | Power [kW] |
|---|---|---|---|---|
| Power series | ESP 37/66 | 4,550 | 3.8 | 37 |
| Power series | ESP 74/66 (dual pump) | 4,550 | 7.6 | 74 |
| Ultimate series | UP 40/6000 | 6,000 | 3.0 | 40 |
Sectors and applications: Aerospace, Automotive parts, Industrial components, Household decoration, Oil and gas equipment, Marine transportation.
Read the full Tekni Cut Pro J L sales page or compare the whole range.
Product information and images: biesse.com.
