Deep power, unshakable accuracy
Gantry system, cutting areas up to 6,100 × 3,050 mm. Supplied, installed and supported in the UK by AMC Jets.
Prices on request. Add this part to your quote and we will come back to you with price and availability, usually the same working day.
Questions about this part? Call +44 (0)1827 60700 or email sales@amcjets.com.

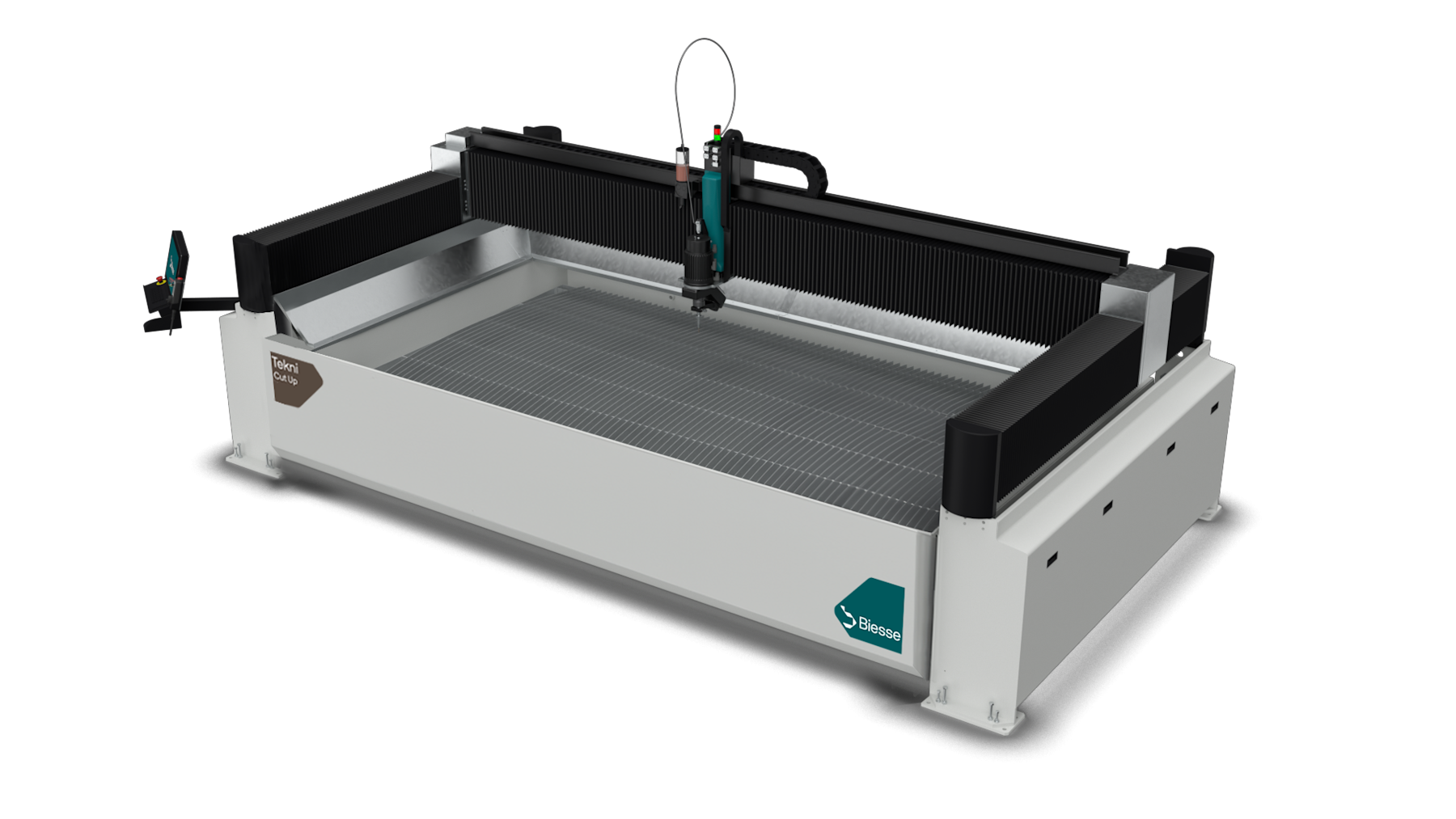

The Tekni Cut Up J G is a high-performance gantry waterjet system that delivers reliable, consistent cutting across a wide range of industrial applications. Highly configurable and built for continuous operation, it adapts to virtually any production environment.
Designed with versatility in mind, the Up J G adapts easily to different metals, thicknesses and application requirements. Six table sizes and 3-axis or 5-axis versions let it respond to evolving production needs, from standard day-to-day work to complex cutting tasks running around the clock.
| Model | Version | Configuration | Cutting area X × Y [mm] |
|---|---|---|---|
| 2040 | 3-axis | Start | 4,000 × 2,000 |
| 2347 | 3-axis | Start | 4,750 × 2,350 |
| 3061 | 3-axis | Start | 6,100 × 3,050 |
| 2036 | 5-axis | Regular | 3,650 × 2,000 |
| 2044 | 5-axis | Regular | 4,415 × 2,025 |
| 2758 | 5-axis | Regular | 5,800 × 2,730 |
| Series | Pump | Max pressure [bar] | Max volume [l/min] | Power [kW] |
|---|---|---|---|---|
| Power series | ESP 37/66 | 4,550 | 3.8 | 37 |
| Power series | ESP 74/66 (dual pump) | 4,550 | 7.6 | 74 |
| Ultimate series | UP 40/6000 | 6,000 | 3.0 | 40 |
Sectors and applications: Aerospace, Automotive parts, Industrial components, Household decoration.
Read the full Tekni Cut Up J G sales page or compare the whole range.
Product information and images: biesse.com.
